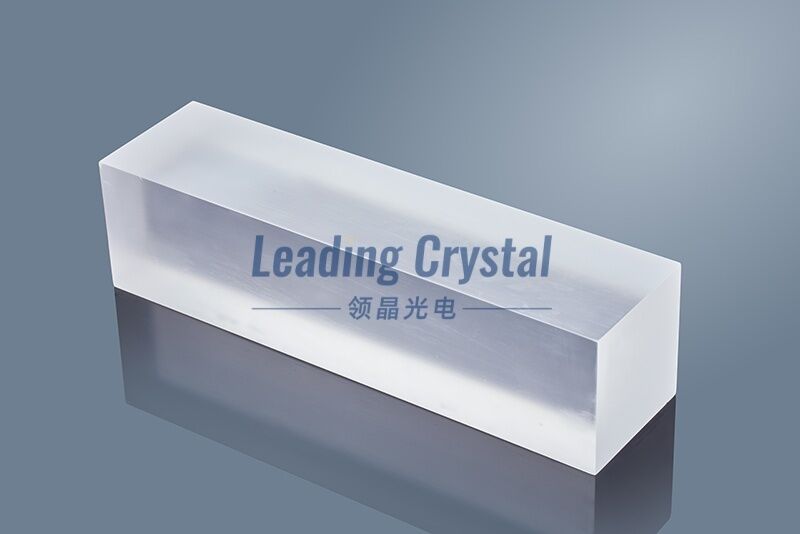

100 mm×100 mm×400 mm NaI (Tl) Crystal

NaI(Tl) crystal detector

Gamma ray spectrometer

Environmental radiation monitoring

Place of Origin:

China

Brand Name:

Leading Crystal

Certification:

ISO

Chat Now

Request A Quote

Product Details

Density(g/cm³)

3.67

Decay time(ns)

230

Light output (photons/MeV)

38,000

Refractive index (@420 nm)

1.85

Emission peak(nm)

415

Hygroscopicity

Strong

Cleavage plane

(100)

Hardness(Mho)

Highlight:

NaI(Tl) crystal detector

Gamma ray spectrometer

Environmental radiation monitoring

Payment & Shipping Terms

Encapsulated ∅50 mm × 100 mm NaI (Tl) Crystal Assembly

Chat Now

Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly

Chat Now

∅3-Inch NaI(Tl) Crystal Detector(PMT: CR119 )

Chat Now

100 mm×100 mm×400 mm NaI(Tl) Crystal Detector | Large Volume Scintillation for High-Efficiency Spectroscopy

Chat Now

86--15859196702

sales.Leadingcrystal@cxtc.com

Chat Now

Product Description

100 mm×100 mm×400 mm Nal(Tl) Crystal

Product Description

NaI(Tl) crystals are classic and excellent inorganic scintillation crystals, which are widely used in nuclear medicine, nuclear physics, environmental monitoring, well logging and high energy physics experiments.

Main advantages

Good energy resolution for both X-rays and γ-rays
High light output and no obvious self-absorption in the luminescence band, with high luminescence efficiency
Match well with photomultiplier tube, high photoelectric conversion efficiency

Performance indicators

Performance	Parameter
Crystal structure	Cubic
Melting point (℃)	651
Wavelength of emission peak (nm)	415
Light output (photons/MeV)	38000
Energy resolution (@662 keV, 100 mm x100 mm x400 mm)	7.5%
Decay time (ns)	230
Hardness (Mho)	2
Refractive index (@420 nm)	1.85
Hygroscopicity	Strong
Cleavage plane	(100)

Main application fields

Nuclear medicine: Gamma camera, Isotope therapeutic apparatus, etc.
Oil well logging: Natural gamma ray spectral logging, etc.
Geological exploration: Gamma ray spectrometer, etc.
Environmental radiation monitoring: Portable multifunctional radiation detection spectrometer, X & γ dose equivalent (rate) meter, etc.
Industrial Non-Destructive Inspection: Industrial CT, etc.

We Can Provide

Crystal Size: Diameter 5~130 mm, length 5~400 mm, can be customized
Encapsulated assemblies and detectors in various sizes
