∅1-Inch LaBr₃: Ce Scintillation Detector

∅1-Inch LaBr₃: Ce Scintillation Detector
Basic Properties
Place of Origin: China
Brand Name: Leading Crystal
Certification: ISO
Tags:

BGO scintillation crystal

LaBr₃: Ce crystal detector

NaI(Tl) scintillation crystal
Product Summary
∅1-Inch LaBr³: Ce Scintillation Detector ∅1-inch LaBr³: Ce scintillation detector is a fully integrated radiation detection solution, combining a premium Cerium-doped Lanthanum Bromide crystal with matched photomultiplier tube and protective housing. This compact system delivers exceptional energy ...
Product Custom Attributes
Highlight

LaBr₃: Ce scintillation crystal

,

LaBr₃: Ce crystal detector

,

Energy resolution ≤ 3%

Crystal Structure:
Hexagonal
Melting Point (℃ ):
780
Light Output (photons/MeV):
63000
Decay Time (ns):
16
Hygroscopicity:
Yes
Density (g/cm³):
5.1
Wavelength Of Emission Peak (nm):
380
Energy Resolution(@662 KeV):
≤ 3.0%
Product Description
Detailed Specifications & Features

∅1-Inch LaBr³: Ce Scintillation Detector

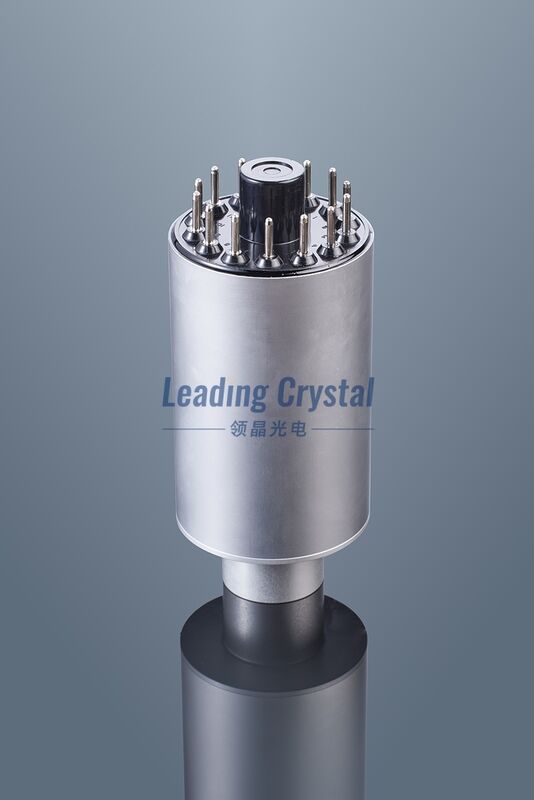

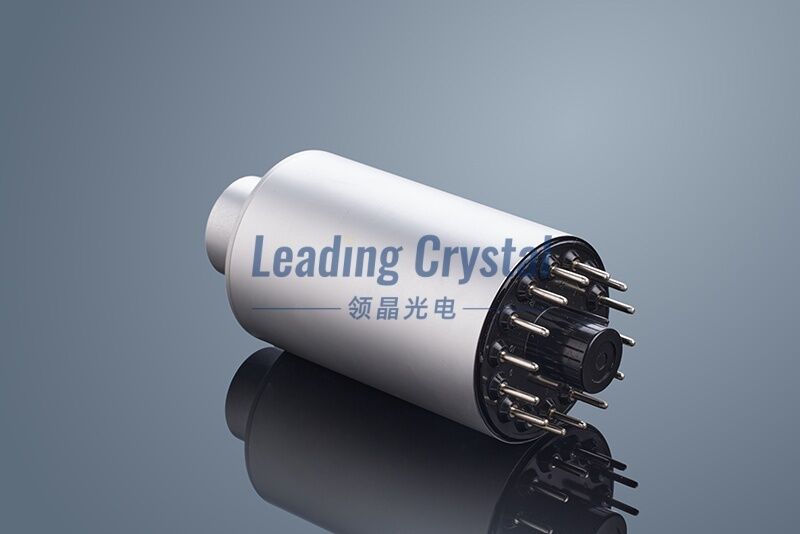

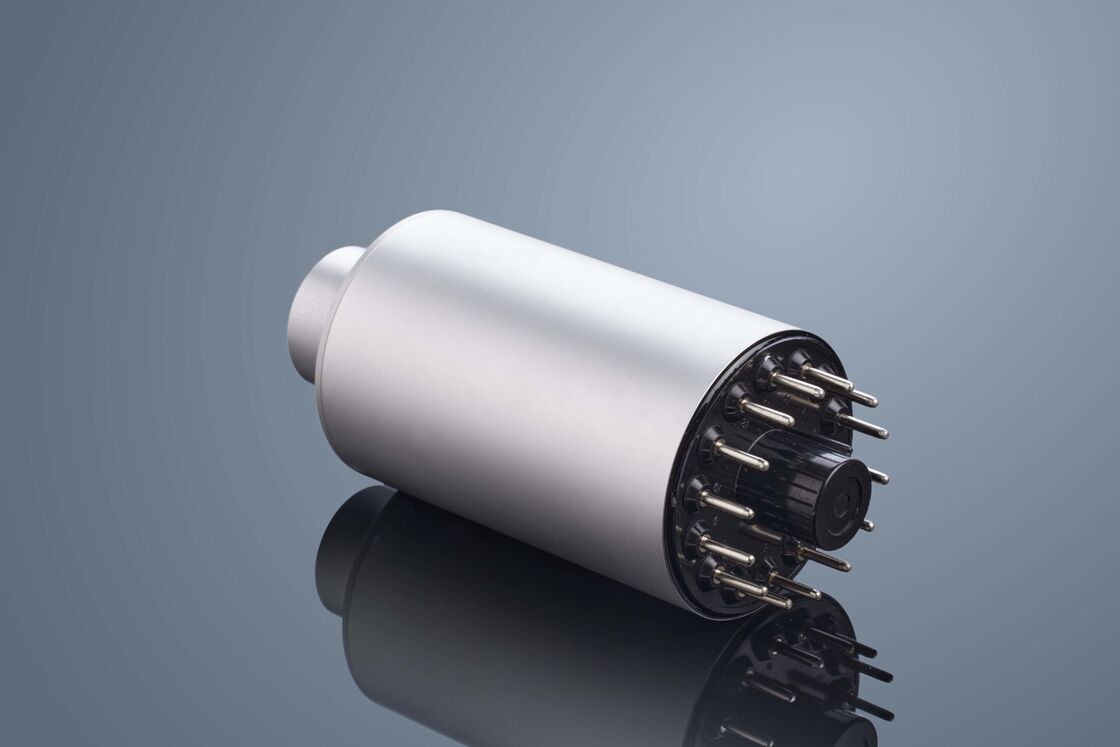

∅1-inch LaBr³: Ce scintillation detector is a fully integrated radiation detection solution, combining a premium Cerium-doped Lanthanum Bromide crystal with matched photomultiplier tube and protective housing. This compact system delivers exceptional energy resolution and fast timing characteristics, making it ideal for portable instruments, laboratory spectroscopy, and space-constrained applications.


The Main Advantages

  • Excellent light output and temperature stability: Achieve optimal detection performance even at high temperatures
  • Best energy resolution for improved isotope identification in handheld Radio-Isotope Identification Device (RIID) applications
  • High density and strong radiation blocking ability to reduce crystal size (vs NaI(Tl)), in RIID or high detection efficiency for all high energy applications


Main Applications

  • Environmental monitoring: Handheld nuclide identifier, etc

  • High-energy physics experiments:satellite gamma-ray detection

  • Nuclear medical imaging: PET, SPECT


We Can Provide

  • Crystal Size: 1~2 inches in diameter, thickness can be customized
  • Encapsulated Assemblies and Detectors with Diameter 1–2 Inches
