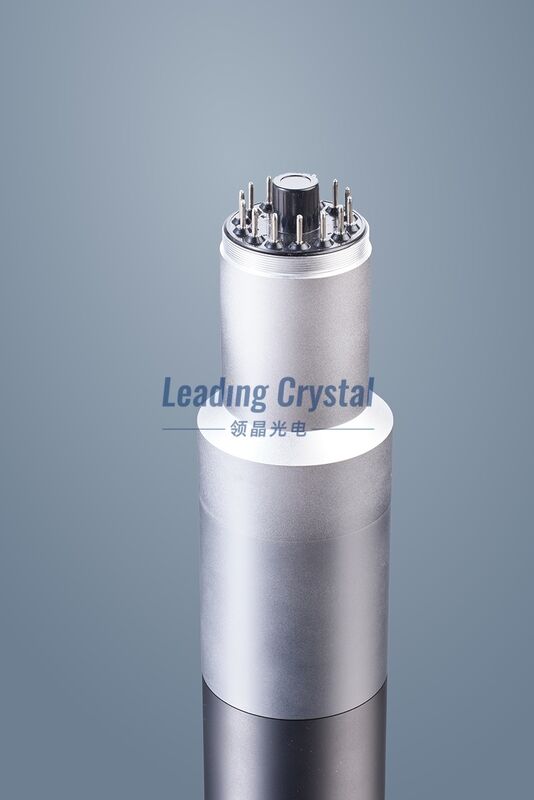

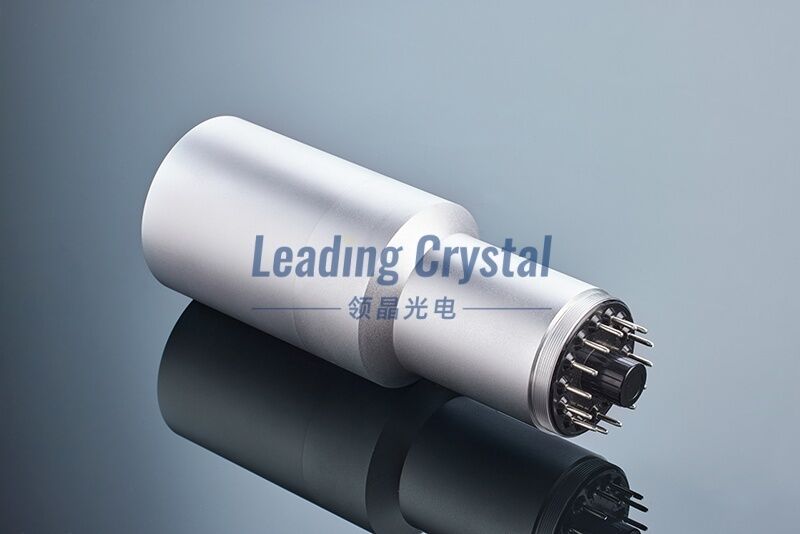

∅3-Inch NaI(Tl) Crystal Detector(PMT: CR119 )
∅3-Inch NaI(Tl) Crystal Detector(PMT: CR119 )
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
∅3-Inch NaI(Tl) Crystal Detector(PMT: CR119) | High-Efficiency Gamma Ray Detection System ∅3-inch NaI(Tl) Crystal Detector(PMT: CR119) represents the ultimate in large-volume gamma detection efficiency. This professional-grade system combines a massive Thallium-doped Sodium Iodide crystal with a ...
Product Custom Attributes
Highlight
Oil well logging
,High light output
,Gamma ray spectrometer
Decay Time(ns):
230
Wavelength Of Emission Peak(nm):
415
Density(g/cm³):
3.67
Crystal Structure:
Cubic
Hardness(Mho):
2
Hygroscopicity:
Strong
Cleavage Plane:
(100)
Light Output (photons/MeV):
38,000
Product Description
Detailed Specifications & Features
∅3-Inch NaI(Tl) Crystal Detector(PMT: CR119) | High-Efficiency Gamma Ray Detection System
∅3-inch NaI(Tl) Crystal Detector(PMT: CR119) represents the ultimate in large-volume gamma detection efficiency. This professional-grade system combines a massive Thallium-doped Sodium Iodide crystal with a matched photomultiplier tube and rugged housing, delivering unmatched sensitivity for applications requiring maximum detection capability and reliable spectroscopic performance.
The Main Advantages
- High light output and no obvious self-absorption in the luminescence band, with high luminescence efficiency
- Good energy resolution for both X-rays and γ-rays
- Match well with photomultiplier tube, high photoelectric conversion efficiency
Main Applications
- Environmental radiation monitoring: Portable multifunctional radiation detection spectrometer, X & γ dose equivalent (rate) meter, etc.
- Industrial Non-Destructive Inspection: Industrial CT, etc.
- Nuclear medicine: Gamma camera, Isotope therapeutic apparatus, etc.
We Can Provide
- Crystal Size: Diameter 5~130 mm, length 5~400 mm, can be customized
- Encapsulated assemblies and detectors in various sizes
