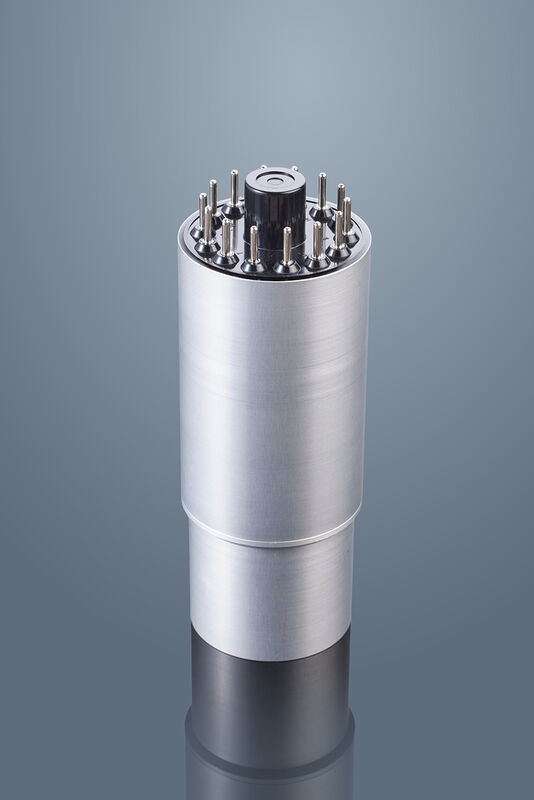

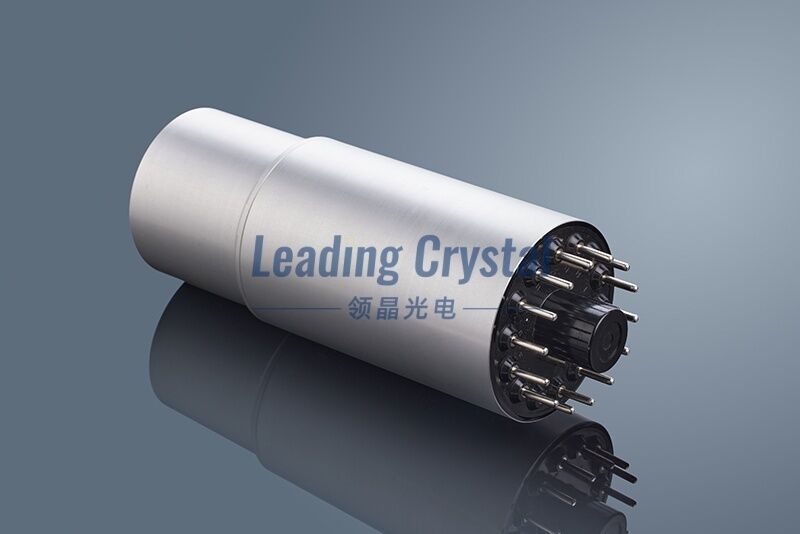

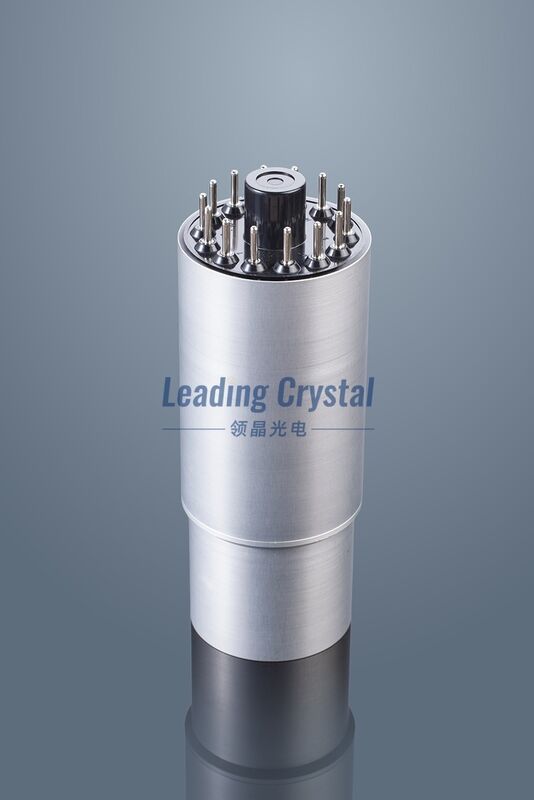

∅2-Inch LaBr₃: Ce Scintillation Detector

∅2-Inch LaBr₃: Ce Scintillation Detector
Basic Properties
Place of Origin: China
Brand Name: Leading Crystal
Certification: ISO
Tags:

BGO scintillation crystal

LaBr₃: Ce crystal detector

NaI(Tl) scintillation crystal
Product Summary
∅2-Inch LaBr₃: Ce Scintillation Detector ∅2-inch LaBr3: Ce scintillation detector is a fully integrated radiation detection solution, combining a premium Cerium-doped Lanthanum Bromide crystal with matched photomultiplier tube and protective housing. This compact system delivers exceptional energy ...
Product Custom Attributes
Highlight

Excellent light output and temperature stability

,

Light output : ≥ 63000 photons/MeV

,

Environmental monitoring

Crystal Structure:
Hexagonal
Melting Point (℃ ):
780
Light Output (photons/MeV):
63000
Decay Time (ns):
16
Hygroscopicity:
Yes
Density (g/cm³):
5.1
Wavelength Of Emission Peak (nm):
380
Energy Resolution(@662 KeV):
≤ 3.0%
Product Description
Detailed Specifications & Features
∅2-Inch LaBr₃: Ce Scintillation Detector

∅2-inch LaBr3: Ce scintillation detector is a fully integrated radiation detection solution, combining a premium Cerium-doped Lanthanum Bromide crystal with matched photomultiplier tube and protective housing. This compact system delivers exceptional energy resolution and fast timing characteristics, making it ideal for portable instruments, laboratory spectroscopy, and space-constrained applications.

Main Advantages
  • Fast decay time enabling high count rate capability for extended measurement capability
  • Excellent light output and temperature stability for optimal detection performance even at high temperatures
  • High density and strong radiation blocking ability to reduce crystal size (vs NaI(Tl)), in RIID or high
    detection efficiency for all high energy applications
Primary Applications
  • Environmental monitoring: Handheld nuclide identifier
  • High-energy physics experiments: satellite gamma-ray detection
  • Nuclear medical imaging: PET, SPECT
We Can Provide
  • Crystal Size: 1~2 inches in diameter, thickness can be customized
  • Encapsulated Assemblies and Detectors with Diameter 1–2 Inches
