Magnesium Fluoride (MgF₂) Crystals | Hard, Broadband UV-VIS-IR Windows, Lenses & Prisms

Laser optical system

High transmittance

Ultraviolet spectrometer ultraviolet detector

Place of Origin:

China

Brand Name:

Leading Crystal

Certification:

ISO

Chat Now

Request A Quote

Product Details

Crystal structure

Tetragonal

Common crystal direction

[001]、[100]、[111]

Melting point (° C)

1255

Transmission Range (μm)

0.12 ~ 9

Cleavage plane

(110)

Transmittance

>90% @0.193 μm ~ 6 μm

Density (g/cm³ )

3.177

Highlight:

Laser optical system

High transmittance

Ultraviolet spectrometer ultraviolet detector

Payment & Shipping Terms

BaF₂ crystal High purity Low impurity Used for optical components

Chat Now

Barium Fluoride (BaF₂) Crystals | Fast Scintillator & VUV-Optical Material Supplier

Chat Now

Barium Fluoride (BaF₂) Rectangular Windows Precision Broadband Optical Windows for UV to IR Applications

Chat Now

Barium Fluoride (BaF₂) Crystal ∅100 mm×3 mm Ultra-Broadband Optical Crystals for UV to IR Applications

Chat Now

86--15859196702

sales.Leadingcrystal@cxtc.com

Chat Now

Product Description

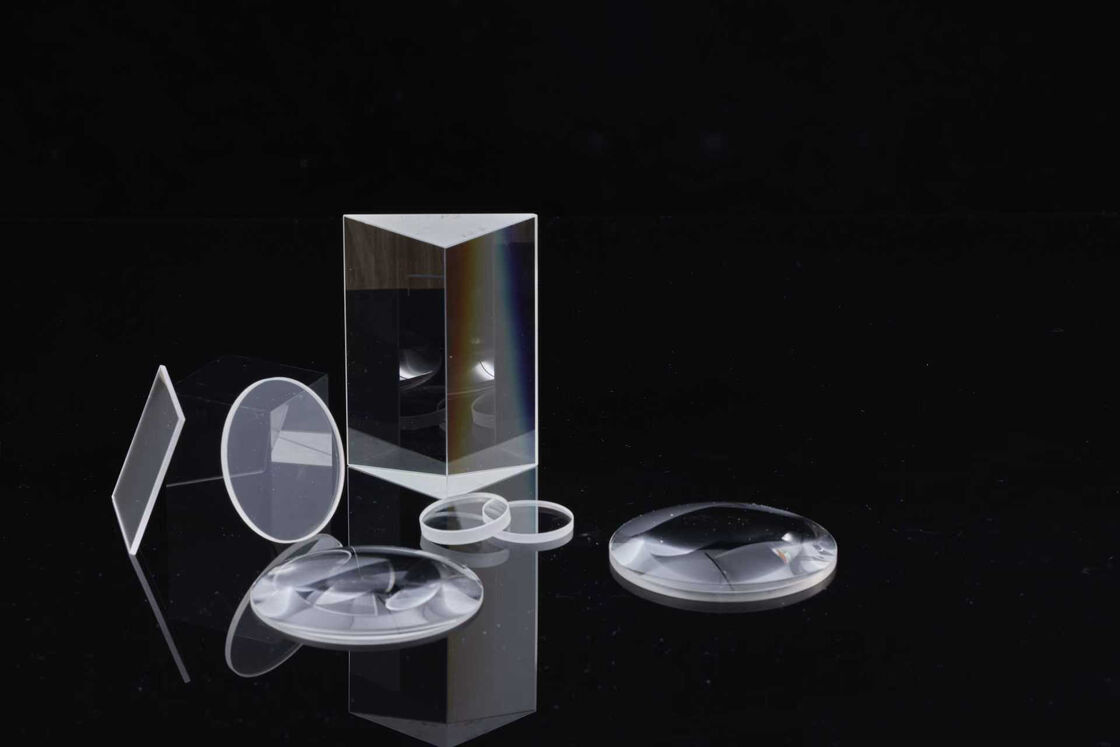

Magnesium Fluoride (MgF₂) Crystals | Hard, Broadband UV-VIS-IR Windows, Lenses & Prisms

High-quality Magnesium Fluoride (MgF₂) single crystals. Exceptional hardness, broadband transmission (0.12-7.5 µm), and durability for harsh-environment laser optics, UV spectroscopy, and IR thermal imaging windows. Custom fabrication available.

Key Advantages

High transmittance
Birefringent property
Low fluorescent radiation
Excellent mechanical and chemical stability

Primary Application Fields

Laser optical system: Lasers, lidar ,etc.
Ultraviolet optical systems: UV spectrometer, UV detector,etc
Infrared optical system: Suitable for a variety of applications such as fluorescence microscopy, image relay, detection or spectroscopy

We Can Provide

Ultraviolet, deep ultraviolet, extreme ultraviolet, excimer laser, and low stress magnesium fluoride crystal materials
Maximum crystal dimensions up to Φ130 mm × 90 mm
Custom processing including windows, wave plates, and flats (specifications tailored to customer requirements)
