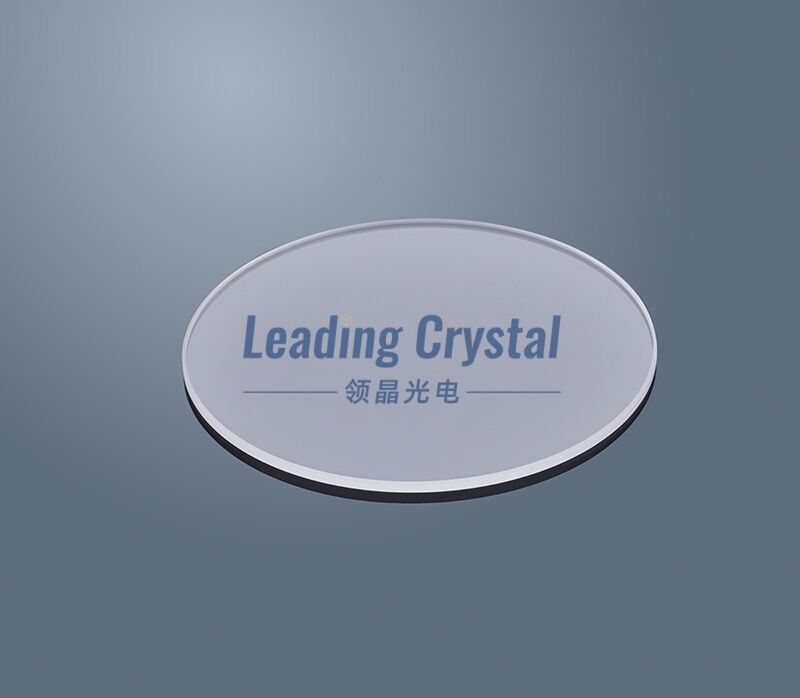

CaF₂ Single Crystals Premium UV-Grade Optical Crystals for Demanding Applications
CaF₂ Single Crystals Premium UV-Grade Optical Crystals for Demanding Applications
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
CaF₂ Single Crystals Premium UV-Grade Optical Crystals for Demanding Applications Single-crystal CaF₂ combines exceptional high transmittance with outstanding thermal stability. In terms of optical performance, it achieves over 80% transmission for infrared radiation, enabling efficient transmission ...
Product Custom Attributes
Highlight
Optical lens
,High optical transmittance
,Chemical stability
Crystal:
Cubic
Cleavage Plane:
(111)
Melting Point (° C):
1420
Transmission Range (μm):
0.13 ~ 10
Transmittance:
>94% @0.193 μm ~ 7.87 μm
Thermal Conductivity (W/(m·K)):
9.71 @293 K
Common Crystal Direction:
[111] 、[100]、[110]
Density (g/cm³ ) :
3.18
Product Description
Detailed Specifications & Features
CaF₂ Single Crystals Premium UV-Grade Optical Crystals for Demanding Applications
Single-crystal CaF₂ combines exceptional high transmittance with outstanding thermal stability. In terms of optical performance, it achieves over 80% transmission for infrared radiation, enabling efficient transmission of infrared optical signals, which makes it widely employed as a core component in devices such as infrared sensors and thermal imagers. Regarding thermal stability, even under high-temperature conditions, the material maintains excellent structural integrity and optical performance, demonstrating remarkable environmental adaptability.
The Main Advantages
- Good mechanical and chemical stability
- High optical transmittance and low scattering rate
-
High hardness and corrosion resistance
Main Applications
- The protective window of infrared sensor:Infrared sensor manufacturing, infrared thermal imager manufacturing, etc.
- Laser resonator mirror: Laser manufacturing, laser application, etc.
- Optical coating material: Optical component manufacturing, optical coating services and other industries
We can provide
- Visible, infrared, ultraviolet calcium fluoride crystal materials
- The maximum crystal size can reach ∅200 mm×90 mm
- Processable products include optical windows, flat plates and any shapes required by customers
