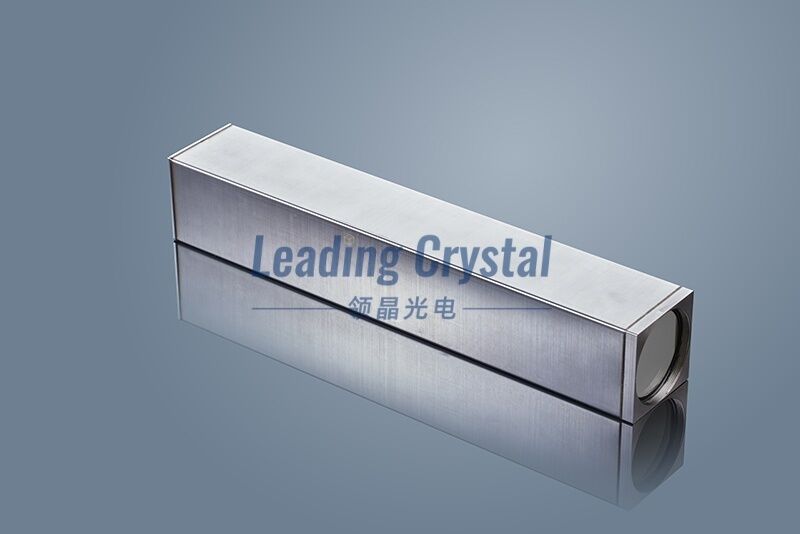

Encapsulated ∅50 mm × 100 mm NaI (Tl) Crystal Assembly
Encapsulated ∅50 mm × 100 mm NaI (Tl) Crystal Assembly
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
Encapsulated ∅50 mm × 100 mm NaI (Tl) Crystal Assembly This Sodium Iodide Scintillation Crystal Assembly is a high-performance detector designed for precise gamma-ray spectroscopy and radiation measurement. The standard NaI (Tl) Crystal 2-inch diameter by 4-inch length (∅50 mm × 100 mm) offers an ...
Product Custom Attributes
Highlight
NaI(Tl) scintillation crystal
,Oil well logging
,Isotope therapeutic apparatus
Hardness(Moh):
2
Density(g/cm³):
3.67
Refractive_Index:
1.85
Wavelength Of Emission Peak (nm)(@420 Nm):
415
Melting Point (℃ ):
651
Light Output (photons/MeV):
38,000
Hygroscopicity:
Strong
Cleavage Plane:
(100)
Product Description
Detailed Specifications & Features
Encapsulated ∅50 mm × 100 mm NaI (Tl) Crystal Assembly
This Sodium Iodide Scintillation Crystal Assembly is a high-performance detector designed for precise gamma-ray spectroscopy and radiation measurement. The standard NaI (Tl) Crystal 2-inch diameter by 4-inch length (∅50 mm × 100 mm) offers an optimal balance between detection efficiency and energy resolution for a wide range of applications.
The Main Advantages
- Match well with photomultiplier tube, high photoelectric conversion efficiency
- High light output and no obvious self-absorption in the luminescence band, with high luminescence efficiency
- Good energy resolution for both X-rays and γ-rays
Main Applications
- Industrial Non-Destructive Inspection:Industrial CT, etc.
- Oil well logging: Natural gamma ray spectral logging, etc
- Environmental radiation monitoring:Portable multifunctional radiation detection spectrometer, X & γ dose equivalent (rate) meter, etc
We Can Provide
- Crystal Size: Diameter 5~130 mm, length 5~400 mm, can be customized
- Encapsulated assemblies and detectors in various sizes
