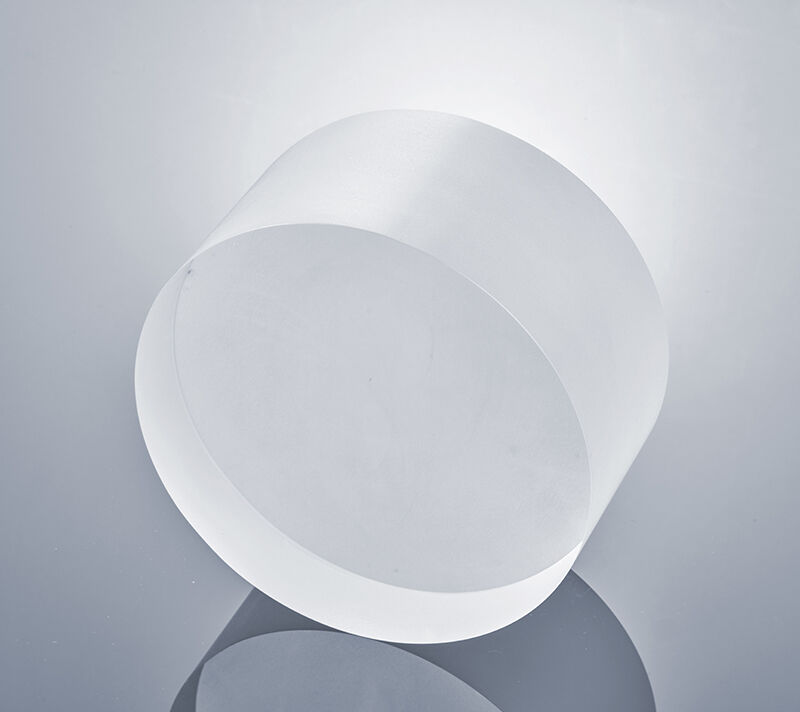

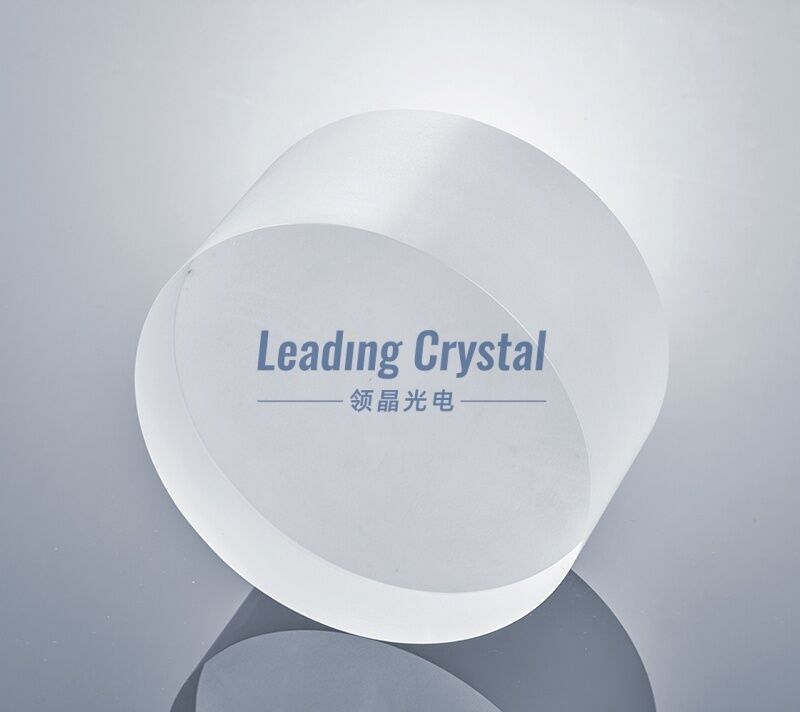

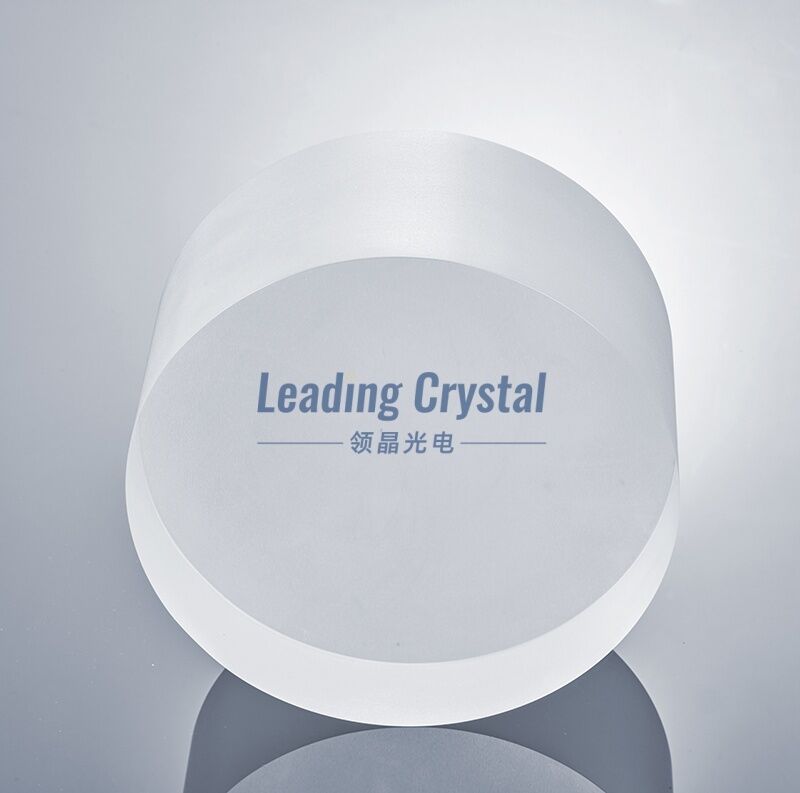

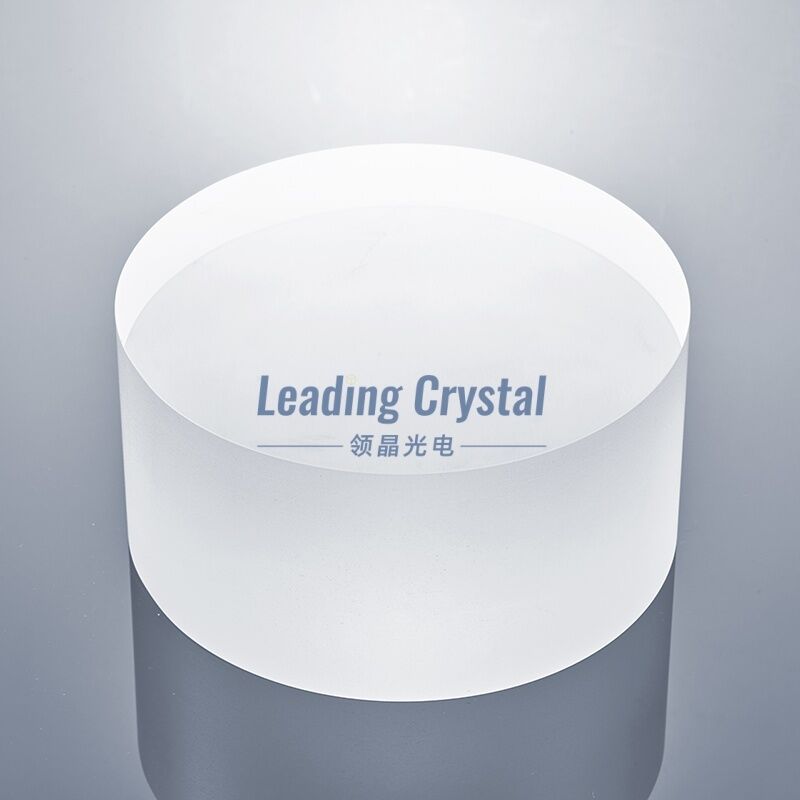

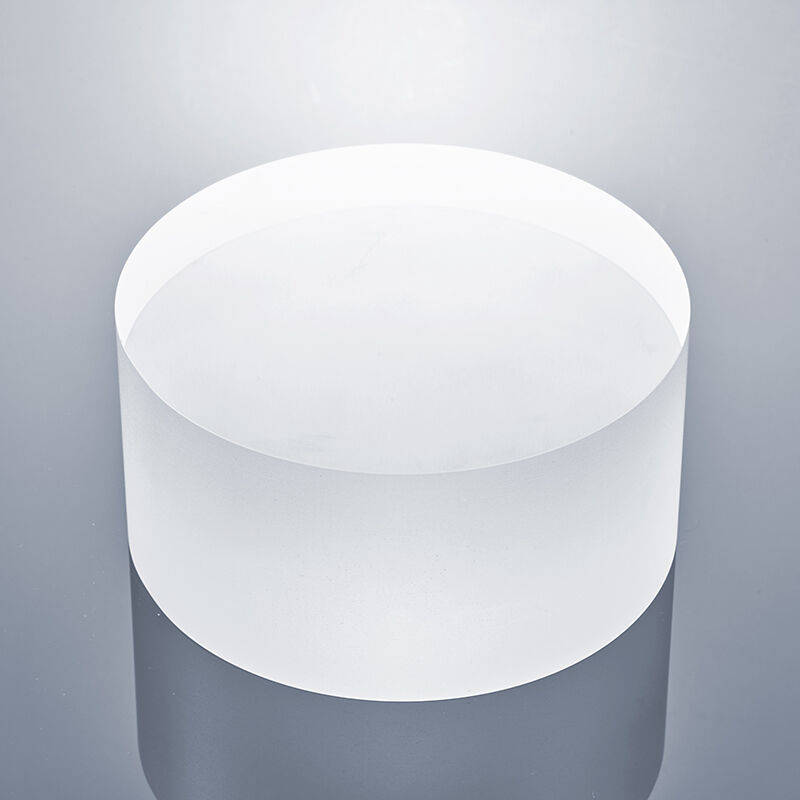

∅6-inch BGO Scintillation Crystal
∅6-inch BGO Scintillation Crystal
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
∅6-inch BGO Scintillation Crystal Discover our premium ∅6-inch BGO scintillation crystals with exceptional density, radiation hardness, and light yield. Ideal for medical imaging, particle physics, security systems, and nuclear instrumentation. Custom sizing available. The Main Advantages No ...
Product Custom Attributes
Highlight
High energy gamma detector
,PET-CT
,Nuclear medical imaging
Crystal Structure:
Cubic
Density (g/cm³ ):
7.13
Hardness (Mho):
5
Radiation Length (cm):
1.1
Energy Resolution (@662 KeV):
＜ 10%
Wavelength Of Emission Peak (nm):
480
Decay Time (ns):
300
Temperature Coefficient Of Light Yield (/℃ ):
-1.2%
Product Description
Detailed Specifications & Features
∅6-inch BGO Scintillation Crystal
Discover our premium ∅6-inch BGO scintillation crystals with exceptional density, radiation hardness, and light yield. Ideal for medical imaging, particle physics, security systems, and nuclear instrumentation. Custom sizing available.
The Main Advantages
-
No luminescence self-absorption
-
Non-hygroscopicity
-
High density, strong stopping power to high-energy ray
Performance Indicators
| Parameter | Value |
|
Crystal structure
|
Cubic
|
|
Density (g/cm3 )
|
7.13
|
|
Radiation length (cm)
|
1.1
|
| Effective Atomic Number | 75 |
| Peak Emission Wavelength(nm) | 480 |
| Decay Time(ns) | 300 |
| Hygroscopic | No |
Main Applications
-
Oil well logging:Natural gamma logging tool, Geochemical element logging tool, etc.
-
Geological exploration:High energy gamma detector, etc
-
Nuclear medical imaging:PET-CT
We can provide
- The diameter can reach 8 inches, thickness can be customized
