∅1.5-Inch LaBr₃: Ce Scintillation Detector
∅1.5-Inch LaBr₃: Ce Scintillation Detector
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
∅1.5-Inch LaBr₃: Ce Scintillation Detector ∅1.5-inch LaBr³: Ce scintillation detector represents the perfect balance between detection efficiency and spectroscopic performance. This fully integrated system combines a premium Cerium-doped Lanthanum Bromide crystal with matched photomultiplier tube ...
Product Custom Attributes
Highlight
LaBr₃: Ce crystal detector
,Energy resolution ≤ 3%
,PET、SPECT
Crystal Structure:
Hexagonal
Melting Point (℃ ):
780
Light Output (photons/MeV):
63000
Decay Time (ns):
16
Hygroscopicity:
Yes
Density (g/cm³):
5.1
Wavelength Of Emission Peak (nm):
380
Energy Resolution(@662 KeV):
≤ 3.0%
Product Description
Detailed Specifications & Features

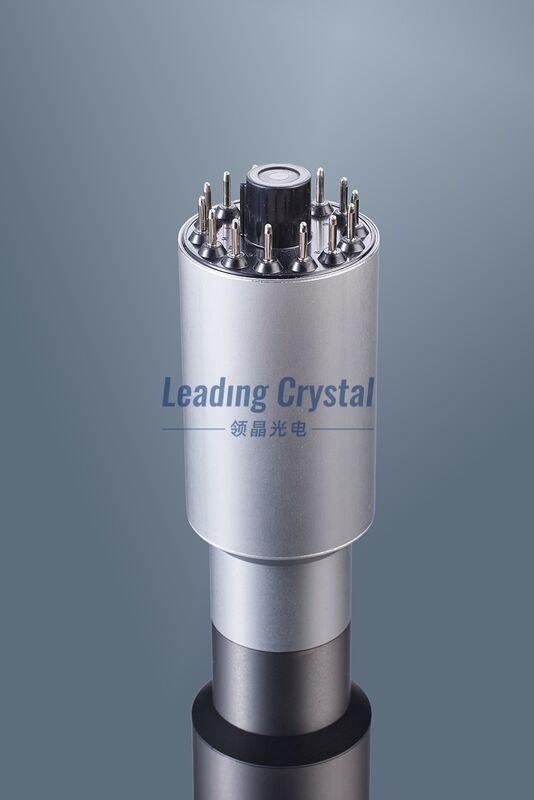

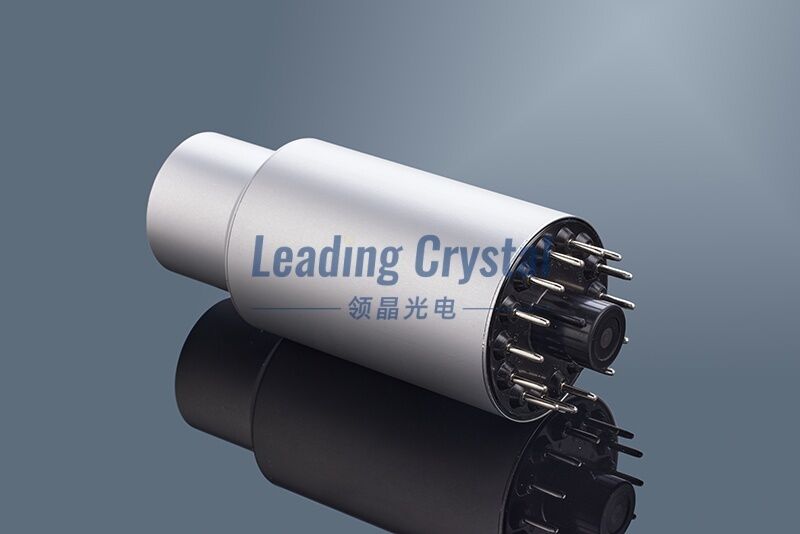

∅1.5-Inch LaBr₃: Ce Scintillation Detector
∅1.5-inch LaBr³: Ce scintillation detector represents the perfect balance between detection efficiency and spectroscopic performance. This fully integrated system combines a premium Cerium-doped Lanthanum Bromide crystal with matched photomultiplier tube and rugged housing, delivering superior performance for applications requiring both high sensitivity and excellent energy resolution.
The Main Advantages
-
Best energy resolution for improved isotope identification in handheld Radio-Isotope Identification Device (RIID) applications
-
Fast decay time enabling high count rate capability for extended measurement capability
-
Excellent light output and temperature stability: Achieve optimal detection performance even at high temperatures
Main Applications
-
Environmental monitoring: Handheld nuclide identifier, etc.
-
Nuclear medical imaging: PET, SPECT
-
Oil well logging:Lithologic scanning instrument, etc
We Can Provide
- Crystal Size: 1~2 inches in diameter, thickness can be customized
- Encapsulated Assemblies and Detectors with Diameter 1–2 Inches
