66 mm×88 mm×400 mm BGO Crystal Block

BGO crystal detector

Energy resolution ＜ 10%

High energy gamma detector

Place of Origin:

China

Brand Name:

Leading Crystal

Certification:

ISO

Chat Now

Request A Quote

Product Details

Crystal structure

Cubic

Density (g/cm³ )

7.13

Effective atomic number

Hardness (Mho)

Refractive index (@480 nm)

2.15

Radiation length (cm)

1.1

Energy resolution (@662 keV)

＜ 10%

Wavelength of emission peak (nm)

480

Decay time (ns)

300

Temperature coefficient of light yield (/℃ )

-1.2%

Highlight:

BGO crystal detector

Energy resolution ＜ 10%

High energy gamma detector

Payment & Shipping Terms

Encapsulated ∅50 mm × 100 mm NaI (Tl) Crystal Assembly

Chat Now

Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly

Chat Now

∅3-Inch NaI(Tl) Crystal Detector(PMT: CR119 )

Chat Now

100 mm×100 mm×400 mm NaI(Tl) Crystal Detector | Large Volume Scintillation for High-Efficiency Spectroscopy

Chat Now

86--15859196702

sales.Leadingcrystal@cxtc.com

Chat Now

Product Description

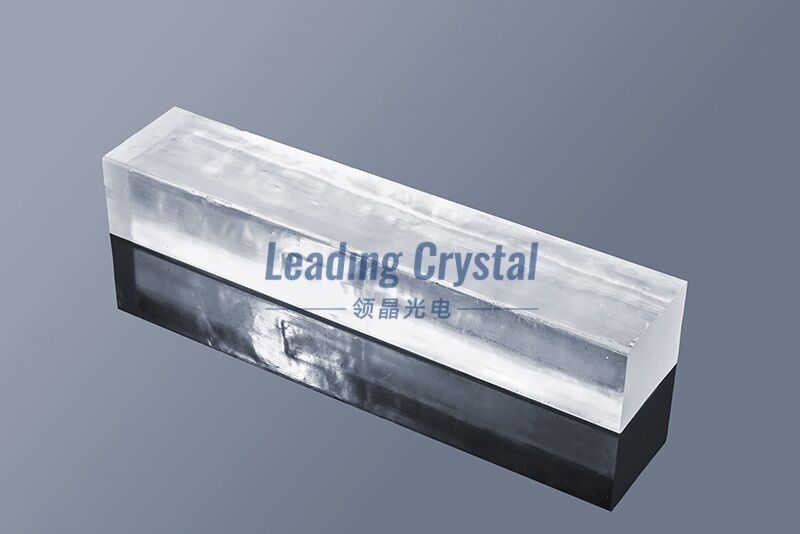

66 mm×88 mm×400 mm BGO Crystal Block

Special-dimension BGO scintillator crystal, precisely machined to 66 mm×88 mm×400 mm. Designed for advanced detector systems requiring non-standard, optimized geometries for maximum packing fraction and performance. Ideal for custom PET, SPECT, and physics applications.

Main Advantages

No luminescence self-absorption
Non-hygroscopicity
High density, strong stopping power to high-energy ray

Main Applications

Oil well logging : Natural gamma logging tool, Geochemical element logging tool, etc.
Geological exploration : High energy gamma detector, etc.
Nuclear medical imaging : PET-CT

We Can Provide

Crystal Size : the diameter can reach 8 inches, thickness can be customized
Encapsulated assemblies and detectors in various sizes
