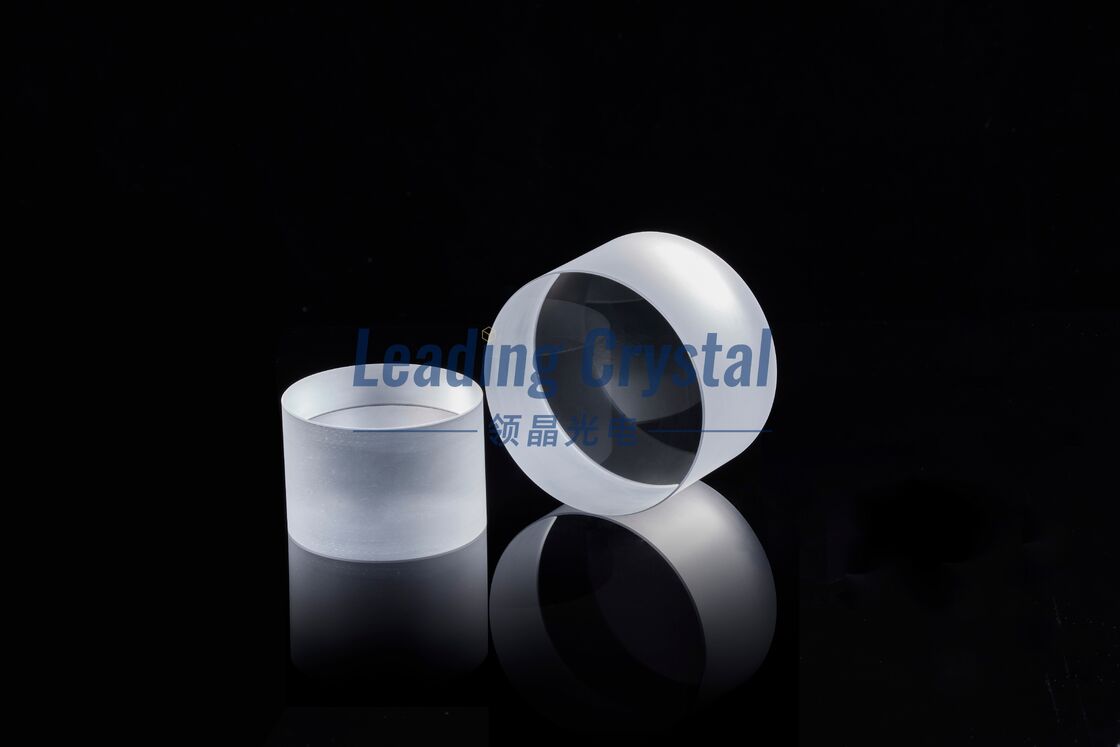

MgF₂ crystal has high light transmittance for UV band
MgF₂ crystal has high light transmittance for UV band
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
MgF₂ crystal has high light transmittance for UV band MgF2 crystals feature high hardness, excellent resistance to deliquescence and corrosion.It has high transmittance in the vacuum ultraviolet band and a short ultraviolet cutoff edge (λcutoff= 115 nm). Main advantages High transmittance Birefringe...
Product Custom Attributes
Highlight
Ultraviolet optical systems
,Infrared optical system
,Laser optical system
Crystal Structure:
Tetragonal
Common Crystal Direction:
[001]、[100]、[111]
Melting Point (° C):
1255
Transmission Range (μm):
0.12 ~ 9
Cleavage Plane:
(110)
Transmittance:
>90% @0.193 μm ~ 6 μm
Density (g/cm³ ) :
3.177
Product Description
Detailed Specifications & Features
MgF₂ crystal has high light transmittance for UV band
MgF2 crystals feature high hardness, excellent resistance to deliquescence and corrosion.It has high transmittance in the vacuum ultraviolet band and a short ultraviolet cutoff edge (λcutoff= 115 nm).
Main advantages
- High transmittance
- Birefringent property
- Low fluorescent radiation
- Good mechanical and chemical stability
Main application fields
- Ultraviolet optical systems: Ultraviolet spectrometer, ultraviolet detector, etc.
- Infrared optical system: Suitable for a variety of applications such as fluorescence microscopy, image relay,detection or spectroscopy
- Laser optical system: Lasers, lidar, etc.
We can provide
- The maximum crystal size can reach ∅130 mm×90 mm
- Ultraviolet, deep ultraviolet, extreme ultraviolet, excimer laser, low stress magnesium fluoride crystal materials
- Processing products are window, wave plate, flat (specifications according to customer requirements)
