LaBr₃: Ce Scintillators | High Light Output & 16ns Fast Decay for Gamma Spectroscopy

Decay time 16 ns

LaBr₃: Ce scintillation crystal

Energy resolution ≤ 3%

Place of Origin:

China

Brand Name:

Leading Crystal

Certification:

ISO

Chat Now

Request A Quote

Product Details

Crystal structure

Hexagonal

Density (g/cm³)

5.1

Melting point (℃ )

780

Wavelength of emission peak (nm)

380

Light output (photons/MeV)

63000

Energy resolution(@662 keV)

≤ 3.0%

Decay time (ns)

Hygroscopicity

Yes

Highlight:

Decay time 16 ns

LaBr₃: Ce scintillation crystal

Energy resolution ≤ 3%

Payment & Shipping Terms

Encapsulated ∅50 mm × 100 mm NaI (Tl) Crystal Assembly

Chat Now

Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly

Chat Now

∅3-Inch NaI(Tl) Crystal Detector(PMT: CR119 )

Chat Now

100 mm×100 mm×400 mm NaI(Tl) Crystal Detector | Large Volume Scintillation for High-Efficiency Spectroscopy

Chat Now

86--15859196702

sales.Leadingcrystal@cxtc.com

Chat Now

Product Description

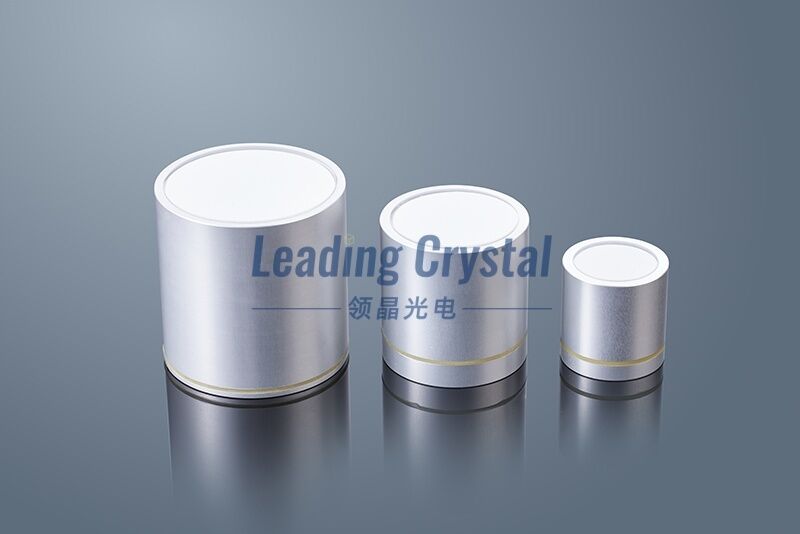

LaBr₃: Ce Scintillators | High Light Output & 16ns Fast Decay for Gamma Spectroscopy

LaBr₃: Ce crystal is a new-found inorganic scintillation crystal with very bright light output and excellent energy resolution. They can be widely applied in fields such as nuclear medical imaging,geological exploration, well logging and nuclear radiation detection.

Main advantages

Best energy resolution for improved isotope identification in handheld Radio-Isotope Identification Device (RIID) applications
High density and strong radiation blocking ability to reduce crystal size (vs NaI(Tl)), in RIID or high

detection efficiency for all high energy applications.
Fast decay time enabling high count rate capability for extended measurement capability.
Excellent light output and temperature stability: Achieve optimal detection performance even at high temperatures
