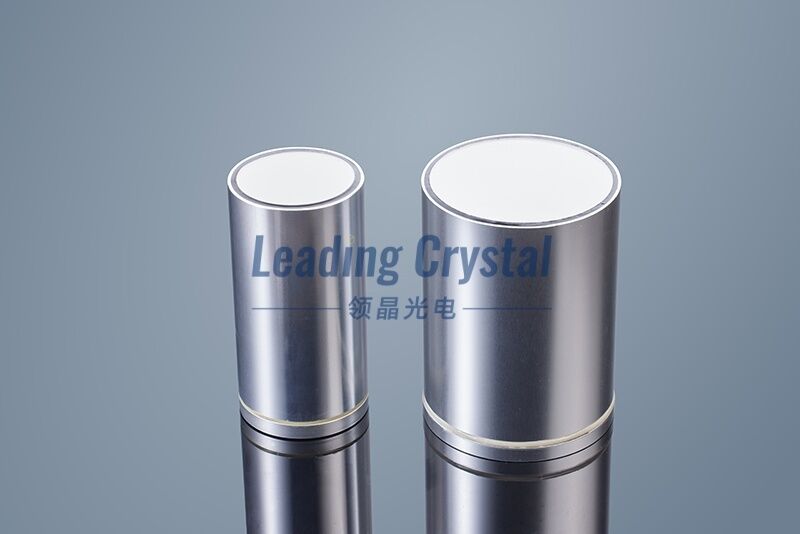

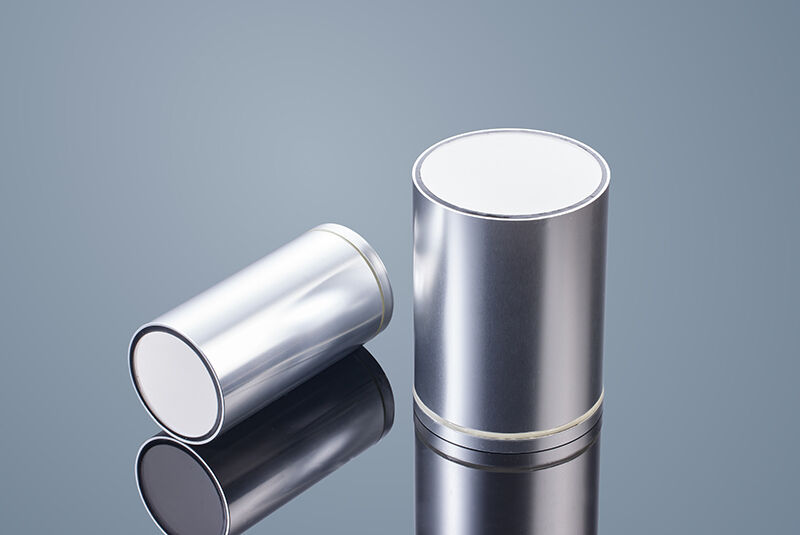

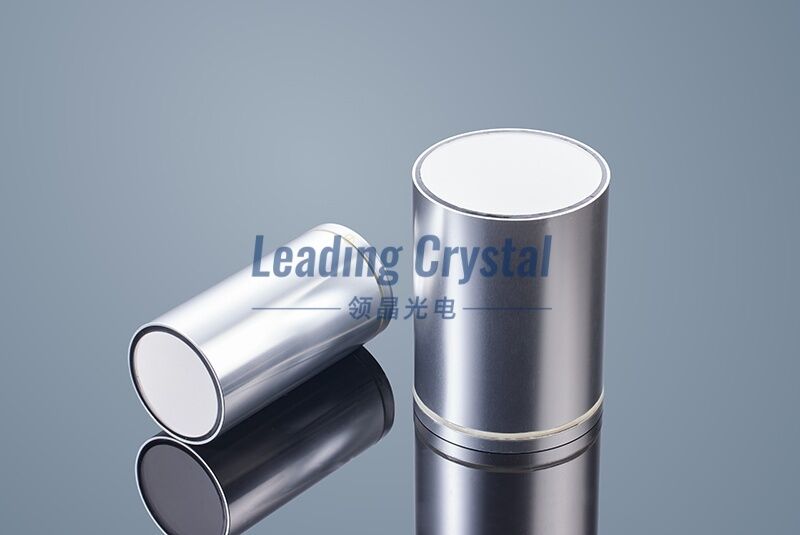

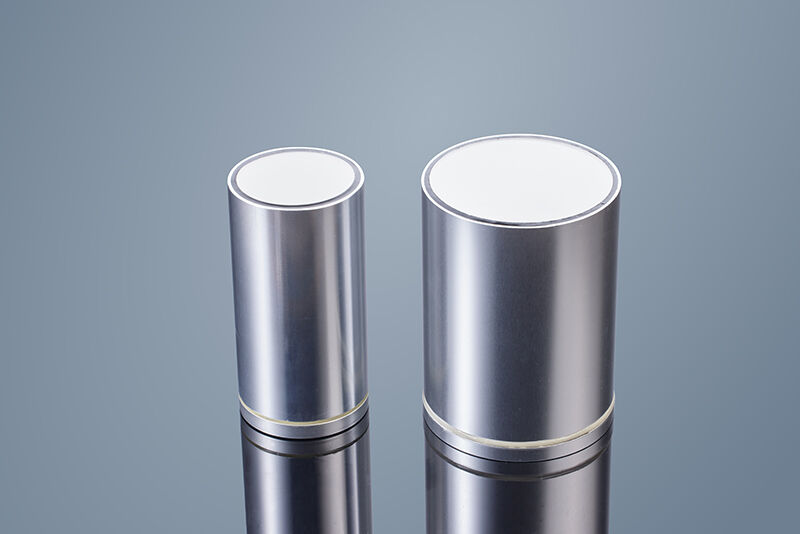

Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly
Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly offers a cost-effective and reliable solution for gamma radiation detection. This complete package integrates a high-performance Thallium-doped Sodium Iodide crystal with optimized optical interfaces and ...
Product Custom Attributes
Highlight
Industrial Non-Destructive Inspection
,Environmental radiation monitoring
,Isotope therapeutic apparatus
Peak Emission(ns):
415
Decay Time(ns):
230
Refractive Index (@420 Nm):
1.85
Density(g/cm³):
3.67
Light Output( Photons/MeV):
38,000
Melting Point(℃):
651
Cleavage Plane:
(100)
Hardness(Mho):
2
Product Description
Detailed Specifications & Features
Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly
Encapsulated ∅2 Inch NaI(Tl) Crystal Assembly offers a cost-effective and reliable solution for gamma radiation detection. This complete package integrates a high-performance Thallium-doped Sodium Iodide crystal with optimized optical interfaces and hermetic housing, providing excellent detection efficiency and stability for various radiation measurement applications.
The Main Advantages
- Match well with photomultiplier tube, high photoelectric conversion efficiency
- Good energy resolution for both X-rays and γ-rays
- High light output and no obvious self-absorption in the luminescence band, with high luminescence efficiency
Main Applications
- Industrial Non-Destructive Inspection:Industrial CT, etc.
- Oil well logging:Natural gamma ray spectral logging, etc.
- Environmental radiation monitoring:Portable multifunctional radiation detection spectrometer, X & γ dose equivalent (rate) meter, etc.
We Can Provide
- Crystal Size: Diameter 5~130 mm, length 5~400 mm, can be customized
- Encapsulated assemblies and detectors in various sizes
