Barium Fluoride (BaF₂) Crystals | Fast Scintillator & VUV-Optical Material Supplier

High transmittance and low absorptivity

BaF₂ crystal

Infrared temperature measurement window

Place of Origin:

China

Brand Name:

Leading Crystal

Certification:

ISO

Chat Now

Request A Quote

Product Details

Crystal structure

Cubic

Cleavage plane

(111)

Common crystal direction

[111]、[100]

Melting point (° C)

1386

Transmission Range (μm)

0.15 ~ 14

Transmittance

>94% @0.35 μm ~ 10.8 μm

Density (g/cm³ )

4.89

Highlight:

High transmittance and low absorptivity

BaF₂ crystal

Infrared temperature measurement window

Payment & Shipping Terms

BaF₂ crystal High purity Low impurity Used for optical components

Chat Now

Barium Fluoride (BaF₂) Crystals | Fast Scintillator & VUV-Optical Material Supplier

Chat Now

Barium Fluoride (BaF₂) Rectangular Windows Precision Broadband Optical Windows for UV to IR Applications

Chat Now

Barium Fluoride (BaF₂) Crystal ∅100 mm×3 mm Ultra-Broadband Optical Crystals for UV to IR Applications

Chat Now

86--15859196702

sales.Leadingcrystal@cxtc.com

Chat Now

Product Description

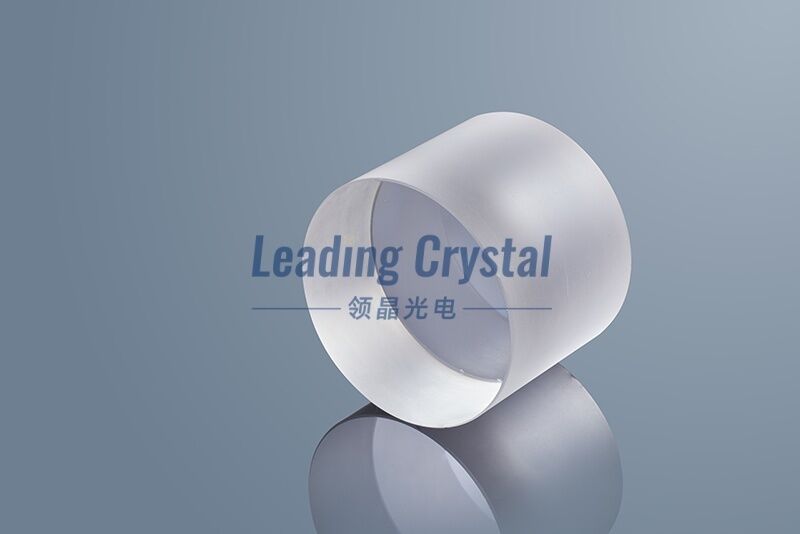

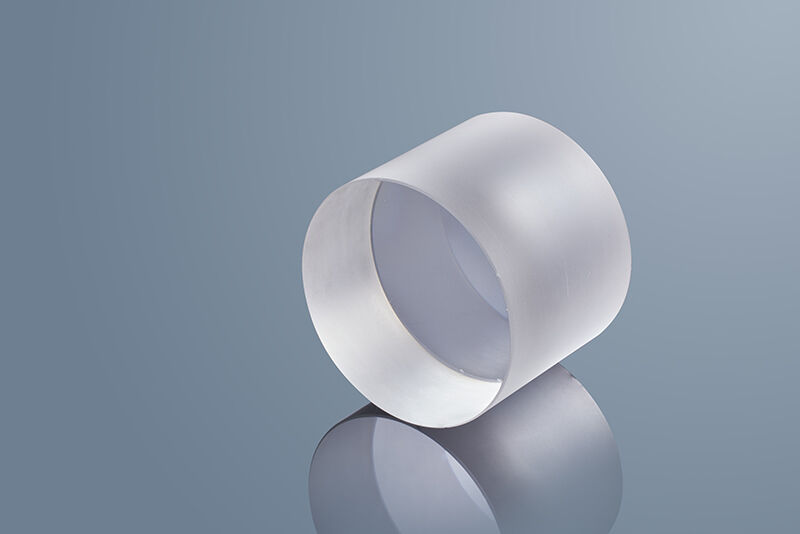

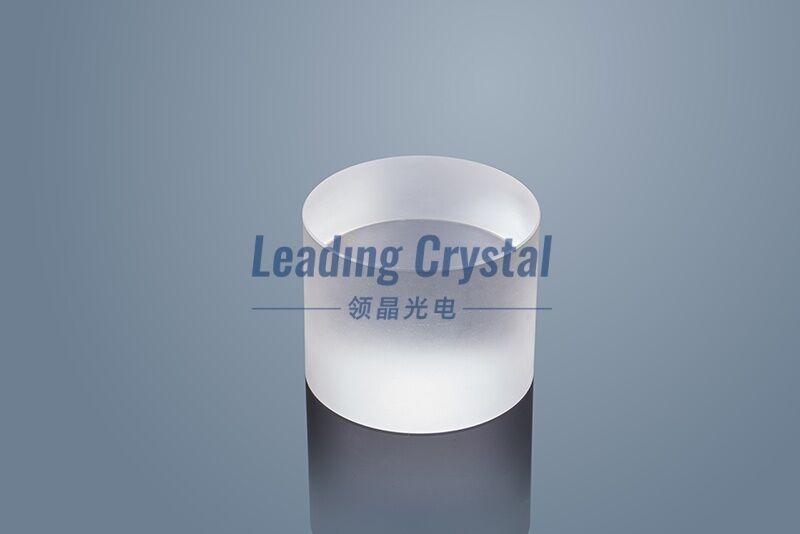

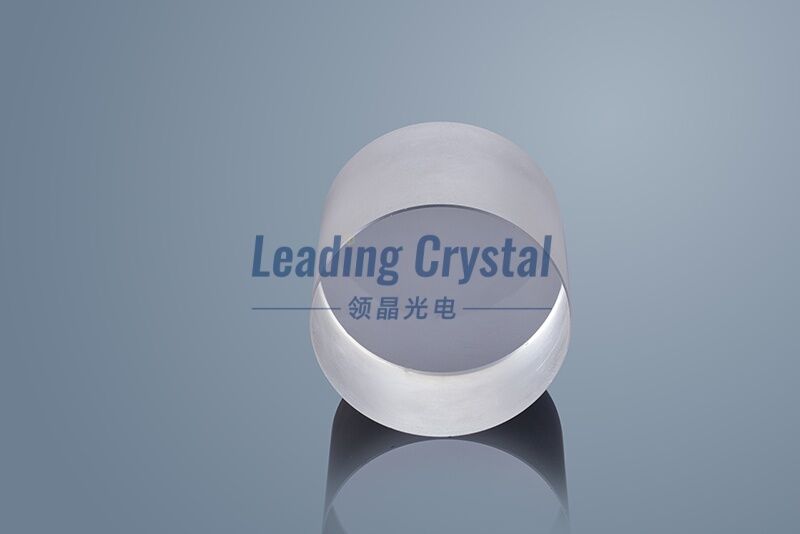

Barium Fluoride (BaF₂) Crystals | Fast Scintillator & VUV-Optical Material Supplier

BaF₂ crystal has good optical and mechanical properties, and is widely used in infrared and ultraviolet windows and lens. In addition, BaF₂crystals also have fast response scintillation properties (decay time of 0.6 ns, peak wavelengtof 220 nm of the fast component), so the BaF₂ has broad application prospects in the fields of nuclear industry, nuclear radiaton monitoring and other fields

Main advantages

High transmittance and low absorptivity
Good optical and mechanical properties
Fast scintillation performance
High refractive index and high dispersion properties

Main application fields

High-Energy Physics: High-energy particles detection

Infrared optical component manufacturing: Infrared lens, infrared window, infrared filter, etc.

Infrared spectrometer and imaging system manufacturing: Infrared spectrometer, infrared thermal imager,infrared imaging system, etc.

We Can Provide

Visible, infrared, ultraviolet, scintillation crystal and other grade crystal materials
Processable products have window plates, flat plates (specifications according to customer requirements)
