Calcium Fluoride (CaF₂) Optical Windows | UV to IR Broadband Transmission
Calcium Fluoride (CaF₂) Optical Windows | UV to IR Broadband Transmission
Basic Properties
Place of Origin:
China
Brand Name:
Leading Crystal
Certification:
ISO
Product Summary
Calcium Fluoride (CaF₂) Optical Windows | UV to IR Broadband Transmission Our Calcium Fluoride (CaF₂) optical windows are manufactured from high-purity single crystals to deliver superior performance across a wide spectral range. As a robust and versatile optical material, CaF₂ is prized for its ...
Product Custom Attributes
Highlight
Good mechanical
,Chemical stability
,Laser manufacturing
Cleavage Plane:
(111)
Melting Point (° C):
1420
Transmittance:
>94% @0.193 μm ~ 7.87 μm
Density (g/cm³ ) :
3.18
Crystal:
Cubic
Common Crystal Direction:
[111] 、[100]、[110]
Transmission Range (μm):
0.13 ~ 10
Thermal Conductivity (W/(m·K)):
9.71 @293 K
Product Description
Detailed Specifications & Features
Calcium Fluoride (CaF₂) Optical Windows | UV to IR Broadband Transmission

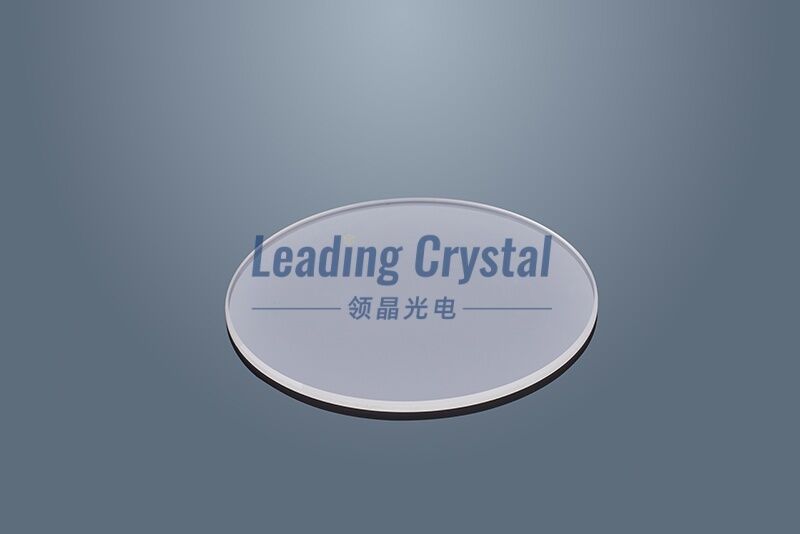

Our Calcium Fluoride (CaF₂) optical windows are manufactured from high-purity single crystals to deliver superior performance across a wide spectral range. As a robust and versatile optical material, CaF₂ is prized for its unique combination of broadband transmission, low absorption, and exceptional laser resistance.
The Main Advantages
- High hardness and corrosion resistance
-
High thermal conductivity and low thermal expansion coefficient
-
Good mechanical and chemical stability
Main Applications
-
Laser resonator mirror: Laser manufacturing, laser application, etc.
-
Optical coating material: Optical component manufacturing, optical coating services and other industries
-
The protective window of infrared sensor: Infrared sensor manufacturing, infrared thermal imager manufacturing, etc.
We Can Provide
- Visible, infrared, ultraviolet calcium fluoride crystal materials
- The maximum crystal size can reach ∅200 mm×90 mm
- Processable products include optical windows, flat plates and any shapes required by customers
